Overview

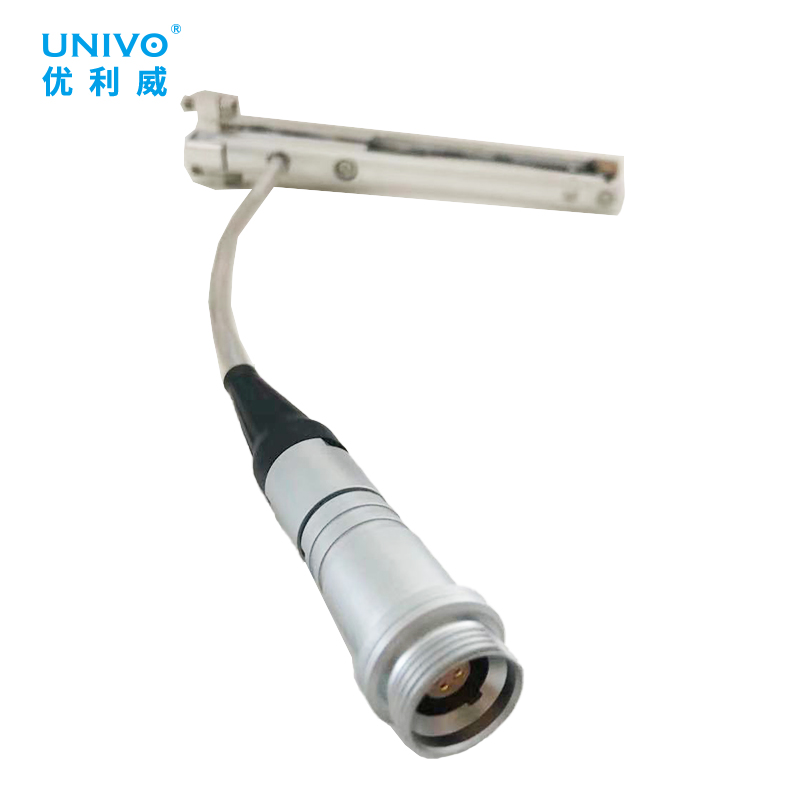

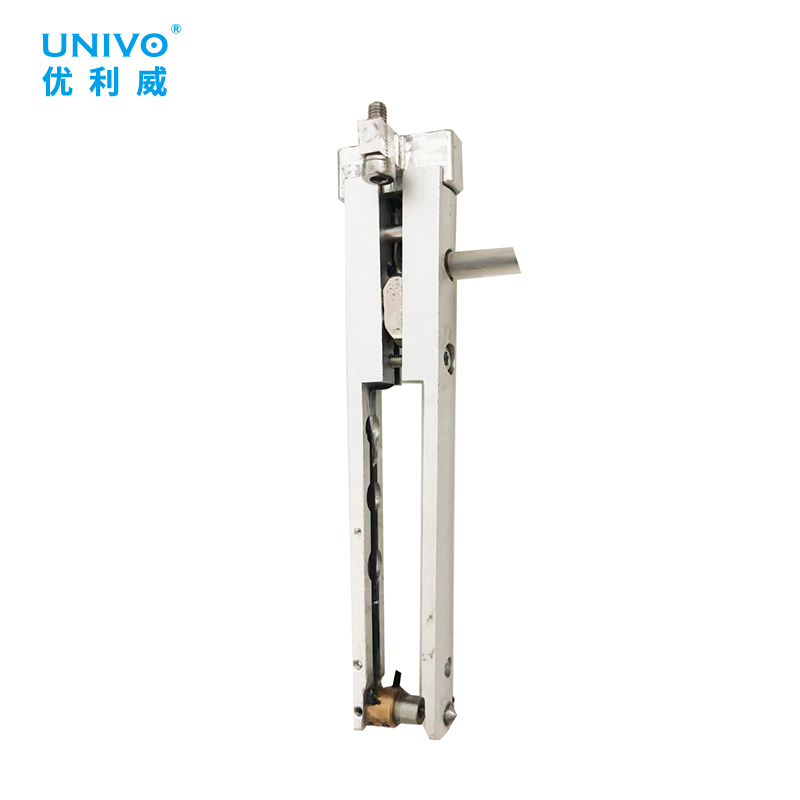

USAP01 series products are unique in design, small in size, light in weight, simple in operation, and will not scratch the measured object. They have high accuracy, reliable performance, and wide application range. They can support the measurement of the diameter of high-precision disc workpiece, the diameter of the measuring aperture, or the displacement of the object. They can easily, quickly, and accurately obtain the measurement results, and output DC, AC, analog, and RS485 signals. It can measure the aperture or spacing remotely by installing it on the actuating mechanism such as mechanical arm under the condition of unmanned on-site operation, and meet the accuracy requirements. The measurement range is adjustable. When underwater operation is carried out, it can replace manual measurement to avoid errors, and has better adaptability, especially in deep-sea and other environments where people cannot work. The sensor can directly transmit the signal to the rear acquisition system, display the value, and store and analyze the measured data.
Benefits
Sensitive response, high precision, high repeatability and long-term reliability
Simple operation, easy to learn and use, without scratching the tested object
Low cost, low power consumption, widely used in various industries
Small and compact design structure, firm structure and long service life
The size and weight are portable and can be used for mobile inspection. The probe can be replaced with good reproducibility and is suitable for mass customization
Applications
Measuring the size of disc type workpieces
Measure the diameter of the hole diameter
Measure the displacement or spacing of objects
Underwater ranging
Radiation and other special environment measurement
Electrical Data
Measuring range: internal and external dimensions can be customized
Repetition accuracy; one μ m
Power supply: 24VDC
Indication error: 0.25% FS
Output signal: AC, DC, analog, RS485
Probe material: aluminum, hard chromium plating, hard alloy, ruby, diamond, plastic, etc. can be customized
Product size: customizable
