Overview

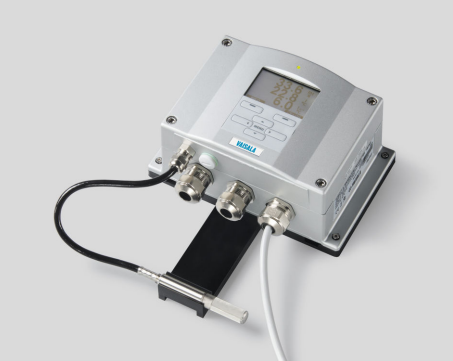

Univo HMT330 series humidity and temperature transmitters are designed for demanding industrial applications that focus on stable measurement and mass customization. The instrument can be equipped with a variety of options, which can be customized to meet the specific needs of individual applications. Each delivery will be preconfigured. It has accurate and stable measurement performance even in high humidity or high chemical pollution environment.
Applications
• Cleanroom • Pharmaceutical process • Natatorium • Data center • Archives
Benefits
• 0... 100% RH full range measurement, temperature range up to+180 ° C (+356 ° F) depending on model
• Pressure tolerance up to 100 bar according to model
• The fourth generation Vaisala HUMICAP â sensor, with high accuracy and stability
• Corrosion resistant IP65/IP66 housing
• Excellent performance in harsh environments; Good resistance to chemicals
• Traceable calibration of measurement and analog outputs (including certificates)
• 10 year warranty period (required to be completed in Vaisala every year Service Center Calibration)

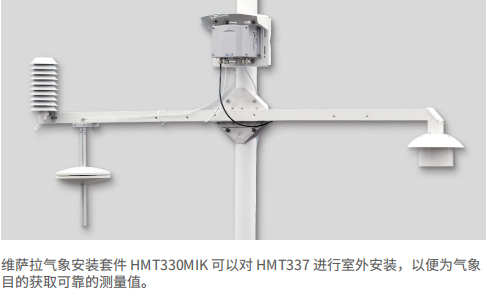

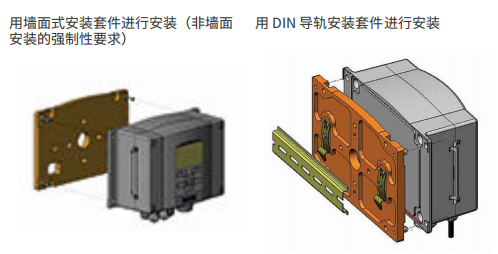

Multiple installation methods

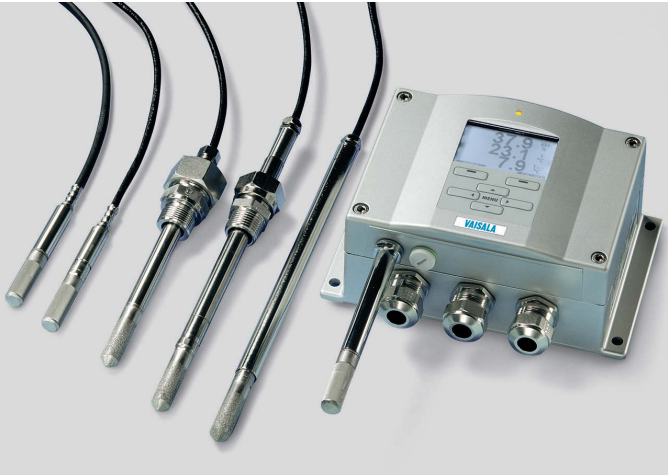

Various measuring probes, various installation accessories and the general selection scheme of mains and DC power supply can facilitate the installation of the instrument in various locations and environments, such as walls, wind poles, pipelines and pipelines. It is a very useful function to connect the I/O cable through the wiring behind the transmitter, especially for clean room installation.
Connectivity
•RS-232/485/422 LAN
• Modbus protocol support (RTU/TCP)
• Optional graphic display and keyboard for easy operation
• Multilingual user interface
• Compatible with Vaisala viewLinc software
Easy to operate measurement data and trend graphic display
HMT330 series products use optional digital and graphic displays with multilingual menus and keyboards. It allows users to easily monitor operational data, measure trends, and access historical measurement data for up to four years.
Multiple output and data acquisition methods
HMT330 can support up to three analog outputs; It also supports electrically isolated power supplies and up to four relay outputs.
USB service cable, RS-232, RS-485/422 and other serial interfaces can be used.
HMT330 can also use Modbus communication protocol, which can be carried out when appropriate connection mode is selected
Modbus RTU (RS-485) or Modbus
TCP/IP (Ethernet) communication.
Flexible calibration
It has been calibrated at five humidity points in the factory, accompanied by a calibration certificate that meets all relevant traceability and compliance requirements.
The chemical cleaning function can minimize the impact of pollutants
In environments with high concentrations of chemicals and detergents, the chemical removal option helps maintain measurement accuracy between calibration intervals.

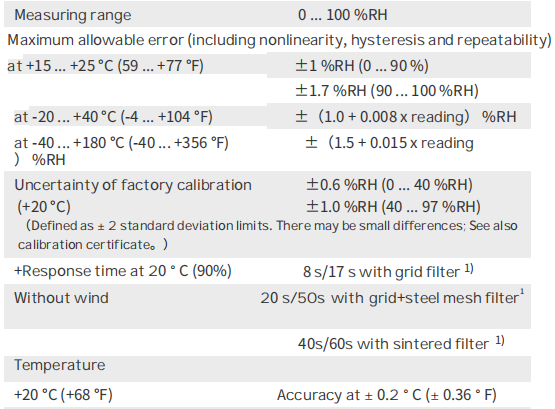

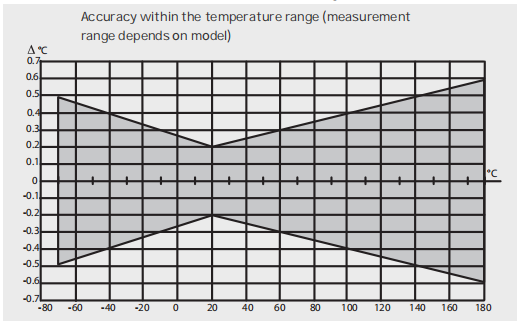

Measuring performance

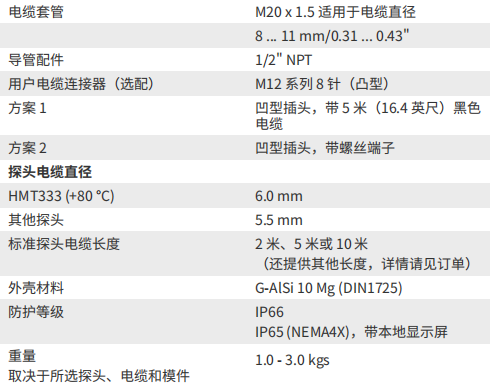

机械参数

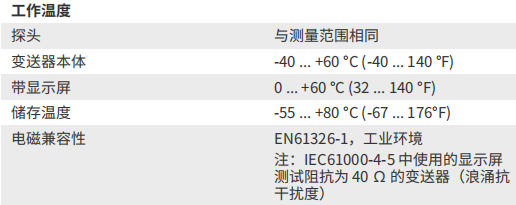

工作环境

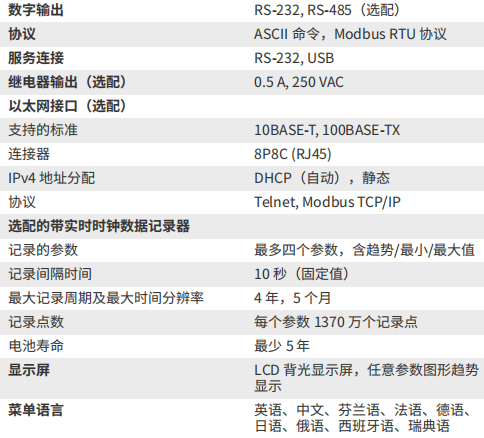

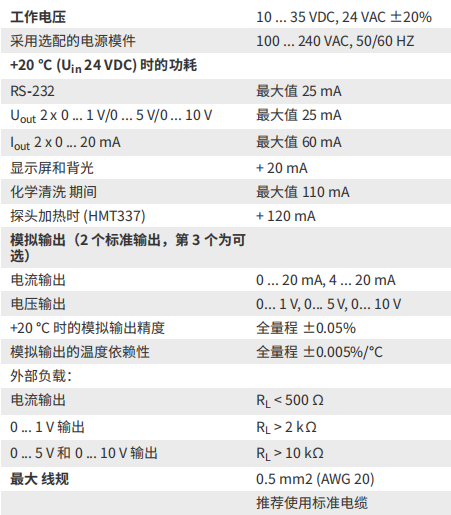

输入和输出
安装选项

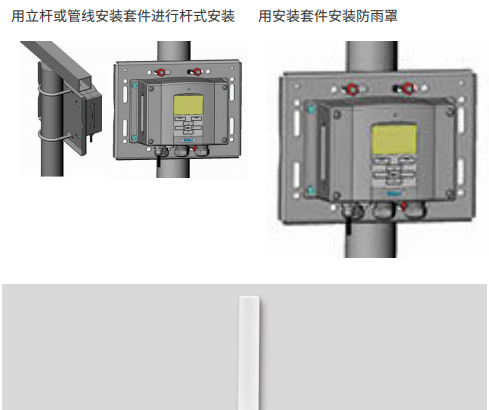

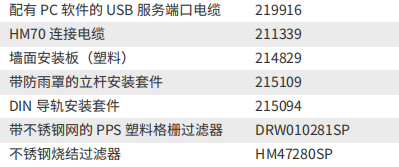

安装配件
