Overview

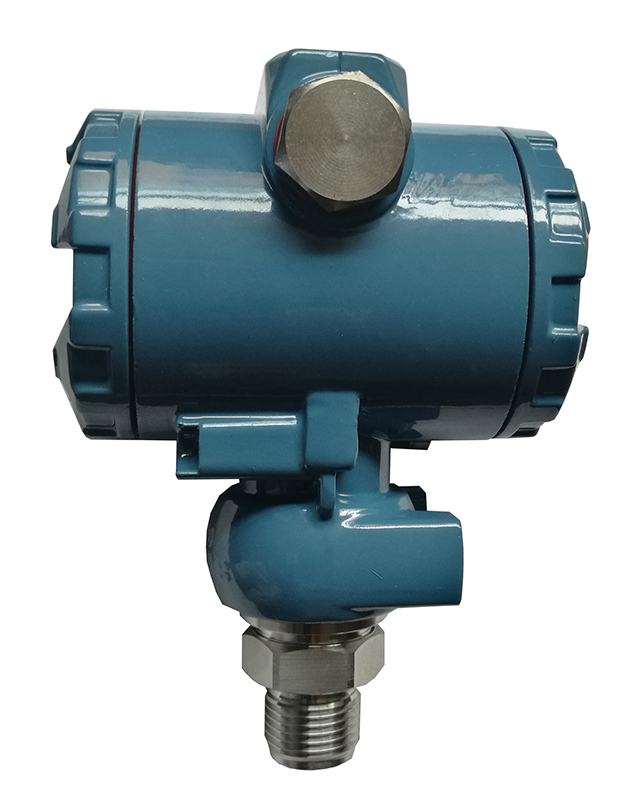

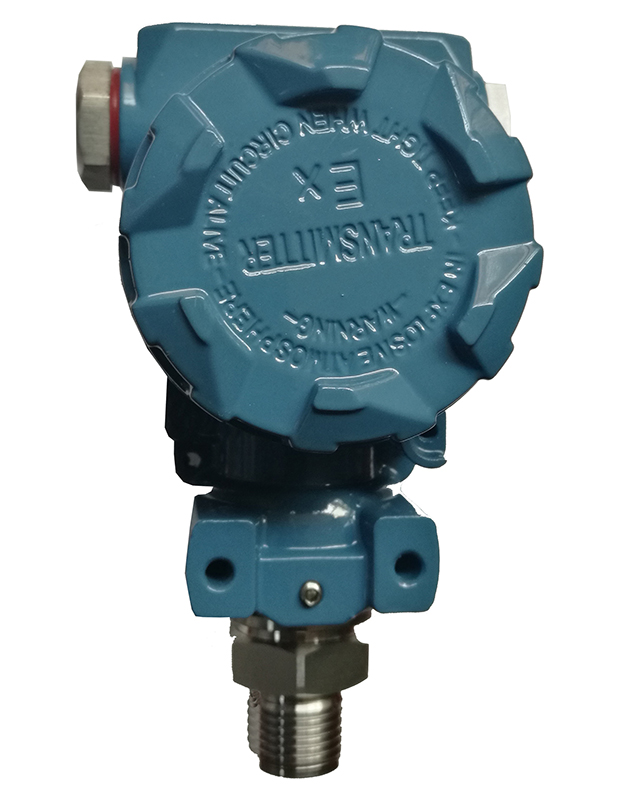

UPT500-705 series adopts explosion-proof structure design, and the explosion-proof grade Exd Ⅱ B T6Gb adopts imported pressure sensing chip; The selected mounting process has zero point, full range compensation, temperature compensation, high-precision and high stability amplification IC; Isolation diaphragm design, integrated structure design, impact resistance, fatigue resistance, high reliability; Fully sealed welded structure.
Benefits
A. Imported resistance strain gauges or diffused silicon pressure sensing chips are used;
B. The selected mounting process has zero point, full range compensation and temperature compensation;
C. High precision and high stability amplifier IC;
D. Isolation diaphragm design, integrated structure design, impact resistance, fatigue resistance, high reliability;
E. Fully sealed welded structure, explosion-proof grade Ex d Ⅱ B T6 Gb;
Applications
Measure and control the pressure in harsh working environment and places with explosion-proof and flameproof requirements;
Parameter
Explosion proof grade: Ex d Ⅱ B T6 Gb
Tested medium: gas, liquid (weak corrosivity)
Pressure type: gauge pressure
Range: - 100KPa ～ 10KPa-0-10KPa ～ 600KPa ～ 150Mpa (small range: 10KPa, large range: 150MPa)
Output:Analog output: 4 ～ 20mA (two-wire system
Comprehensive accuracy: ± 0.25% FS, ± 0.5% FS
Power supply: 24V Dc (12 ～ 36VDC)
Insulation resistance: ≥ 1000 M Ω/100VDC
Load resistance: maximum 800 Ω
Medium temperature: - 20 ～ 85 ℃
Ambient temperature: - 20 ～ 85 ℃
Storage temperature: - 40~90 ℃
Relative humidity: 0~95% RH
Sealing grade: IP65/IP68
Overload capacity: 150% FS
Response time: ≤ 10mS
Stability: ≤± 0.15% FS/year
Vibration impact: ≤± 0.15% FS/year (mechanical vibration frequency: 20Hz ～ 1000Hz)
Electrical connection: Hesmann connector (international standard); Standard wiring 3m

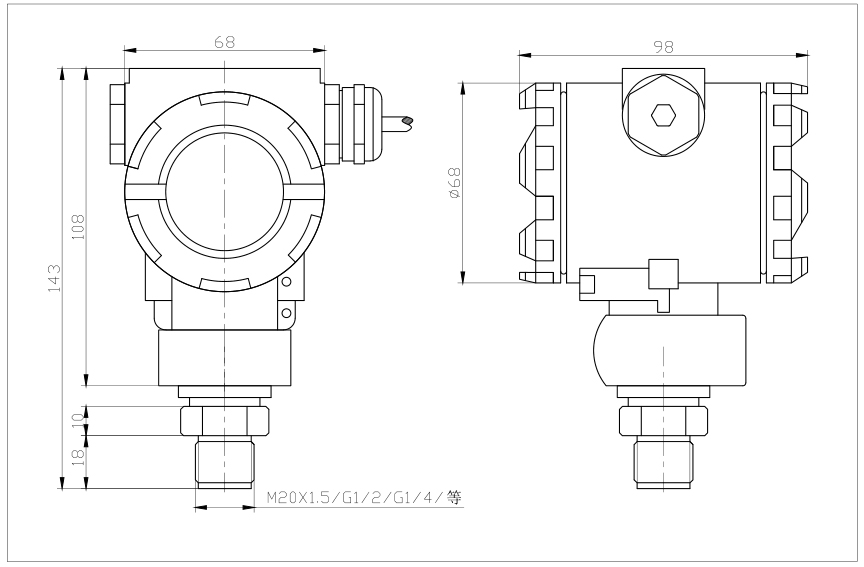

Pressure connection: M20 × 1.5 Taper seal, other threads can be designed according to customer requirements
Connecting thread material: 304/316L stainless steel
Model selection
PT500-35K-mA-0.5-M20-3m-705
Range: 0 ～ 35KPa; Output: 4~20mA; Precision: 0.5% FS; Mounting thread: M20X1.5; Wiring length: 3m; Structure model: 705
