Overview

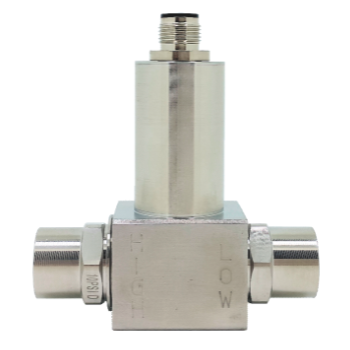

The UV700 series high-precision pressure sensor is a medium isolation differential pressure transmitter, which is composed of an isolation membrane differential pressure sensor and an integrated circuit. It has the characteristics of high precision, good stability, high reliability and high sensitivity. It has a built-in high-performance microprocessor (MCU), which can correct nonlinearity and compensate temperature drift to measure and control liquids and gases.
Benefits
Low static and thermal error
Wide operating temperature range
Compact size
CE certification
Applications
Pressure gauge
water level
Boiler control
Pneumatic
HVAC/R system
filter
Parameter
Accuracy*:<± 0.4% typical.
Stability (1 year):<± 0.25% typ.
Pressure range:up to 300 PSI
Collinear pressure: 500PSI
Pressure cycling 4 million cycles
Output: 0.5-4.5VDC (ratio)/ 0-5V /1-5V /4-20mA
Activate: 10-30VDC/ 5VDC typical value.
Zero offset:<± 0.5% of FS
<± 1% of span tolerance FS
Reverse polarity protection： Yes
*Accuracy includes: nonlinearity, hysteresis and non repeatability
Temperature
Operation: - 40 to 105 ° C
Storage: - 40 to 125 ° C
Thermal Limits
Compensation range: 0 to 70 ° C (32 to 158 ° F)
TC Zero: lower than ± 1.5% of FS
TC span: less than ± 1.5% of FS
other
100G (11ms)
Vibration: 20G, peak value, (20 to 5000Hz.)
EMI/RFI protection: Yes
Rating: IP-65
Wetted material: 316L-SS
Weight: 150g
Electrical connection: HP

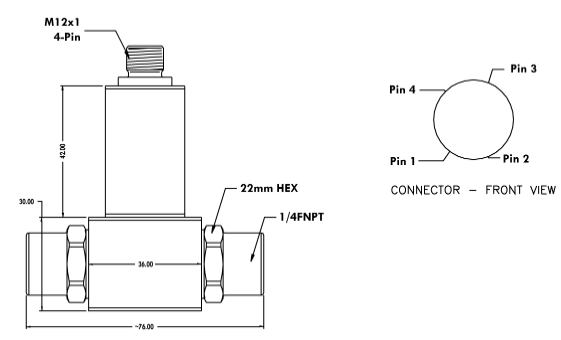

Dimensions
