Overview

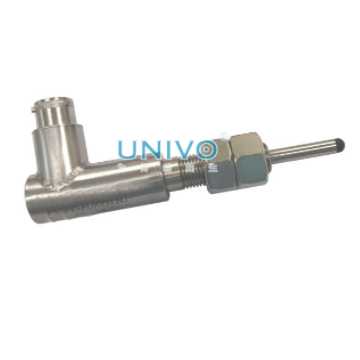

UNIVO UGDR750 series LVDT DC output rebound displacement sensor is designed for DC voltage, with good linearity, high sensitivity and high resolution. They allow output signals to be read out and recorded directly and with high accuracy without auxiliary signal conditioning electronics. Electrical connections are made via radially mounted connectors to shorten the housing length. These spring loaded LVDTs are designed for a wide range of position and dimension measurement applications, ranging from 0.10 inches (2.5 mm) to 4 inches (100 mm).
Benefits
Spring loaded probe
Radial mounting connector
Welded sealing steel shell
Measuring range from 0.05 to ± 2 inches
Linearity of typical full range ± 0.15%
Shock and vibration resistance
Selection of probe contacts
Available in standard and custom models
Applications
Pinch and roller alignment
Dimension measurement
Factory Automation
Material testing
Packaging equipment
TIR measurement
Electrical Data
Input power: ± 15VDC, ± 25mA
Full scale output: 0 to ± 10V DC
Linearity:<± 0.15% typical value of full range
Hysteresis:<0.01% typical value of full range
Repeatability:<0.01% of full range typical value
Dimensions
